Re: Open Baffle Planar servo sub speaker project
May 22nd, 2016, 8:07 pm
Stuart,
Looks like the old Maggy glue delamination problem on that last picture. I understand about having a good solid attachment for each driver.
Probably going to end up getting longer #4 wood screws as the rivets are high and not getting much grip with the #4 - 3/8" screws. Longest that McFeeleys have with square drive is 1/2", so ordered more. Glad I went with the smaller pilot hole size for more grip.
Will keep installing and see what happens.
Looks like the old Maggy glue delamination problem on that last picture. I understand about having a good solid attachment for each driver.
Probably going to end up getting longer #4 wood screws as the rivets are high and not getting much grip with the #4 - 3/8" screws. Longest that McFeeleys have with square drive is 1/2", so ordered more. Glad I went with the smaller pilot hole size for more grip.
Will keep installing and see what happens.
Re: Open Baffle Planar servo sub speaker project
May 22nd, 2016, 9:04 pm
First half of the array is installed. Will do the second half install tomorrow and then start the second baffle.
- Attachments
-
Re: Open Baffle Planar servo sub speaker project
May 23rd, 2016, 10:20 pm
First baffle with 8 - BG Neo10 drivers installed.
Will start work on the second baffle tomorrow. Then align all the drivers.
Will start work on the second baffle tomorrow. Then align all the drivers.
- Attachments
-
Re: Open Baffle Planar servo sub speaker project
May 26th, 2016, 8:35 am
Well the #4-3/8" wood screws were to short to fully seat the drivers to the baffle. Had some wood rip out a few holes.
Have #4-1/2" wood screws arriving today as they were the longest with square drive from McFeeley's. Should be fine and will use a new tub of plastic wood to repair the damaged holes.
Hope they get here today.
Have #4-1/2" wood screws arriving today as they were the longest with square drive from McFeeley's. Should be fine and will use a new tub of plastic wood to repair the damaged holes.
Hope they get here today.
Re: Open Baffle Planar servo sub speaker project
May 27th, 2016, 9:17 am
The McFeeley's order arrives today.
Will see what happens after some plastic wood repairs and longer screws.
Will see what happens after some plastic wood repairs and longer screws.
Re: Open Baffle Planar servo sub speaker project
May 27th, 2016, 10:13 pm
New screws worked. Baffle #1 is complete.
Next to build baffle #2 and make the stabilizing legs.
Next to build baffle #2 and make the stabilizing legs.
- Attachments
-
Re: Open Baffle Planar servo sub speaker project
May 29th, 2016, 8:14 pm
Second Megalith baffle getting ready for pilot hole drilling and Neo10 installation.
- Attachments
-
Re: Open Baffle Planar servo sub speaker project
May 30th, 2016, 5:33 pm

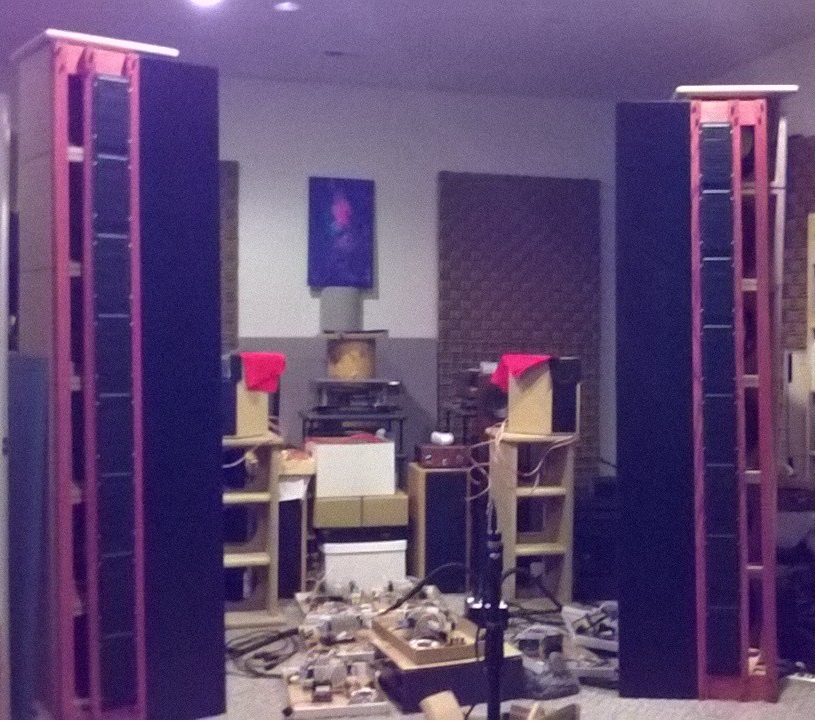

The Megaliths baffles with the BG Neo10 planars are completed.
Time to wire up the drivers to the amp modules for measurements.
Time to wire up the drivers to the amp modules for measurements.
- Attachments
-
Re: Open Baffle Planar servo sub speaker project
June 1st, 2016, 3:28 pm
The counterweight stabilizer for the baffle.
Copper pipe with end hammered shut and marked for bends. Bend pipe angle needed to attach at the top and bottom of the baffle. Add lead shot to add weight and then hammer the other end shut. Drill holes on 2" center to attach to the baffle bolts.
Copper pipe with end hammered shut and marked for bends. Bend pipe angle needed to attach at the top and bottom of the baffle. Add lead shot to add weight and then hammer the other end shut. Drill holes on 2" center to attach to the baffle bolts.
- Attachments
-
Re: Open Baffle Planar servo sub speaker project
June 3rd, 2016, 5:40 pm
The right angle bend for the baffle attachment on the bottom of the stabilizer is finished.
Next will be cutting to length, adding weight and flattening and bending the other end to attach to the top of the baffle.
Last steps before wiring up the drivers to the amps.
Next will be cutting to length, adding weight and flattening and bending the other end to attach to the top of the baffle.
Last steps before wiring up the drivers to the amps.
- Attachments
-
