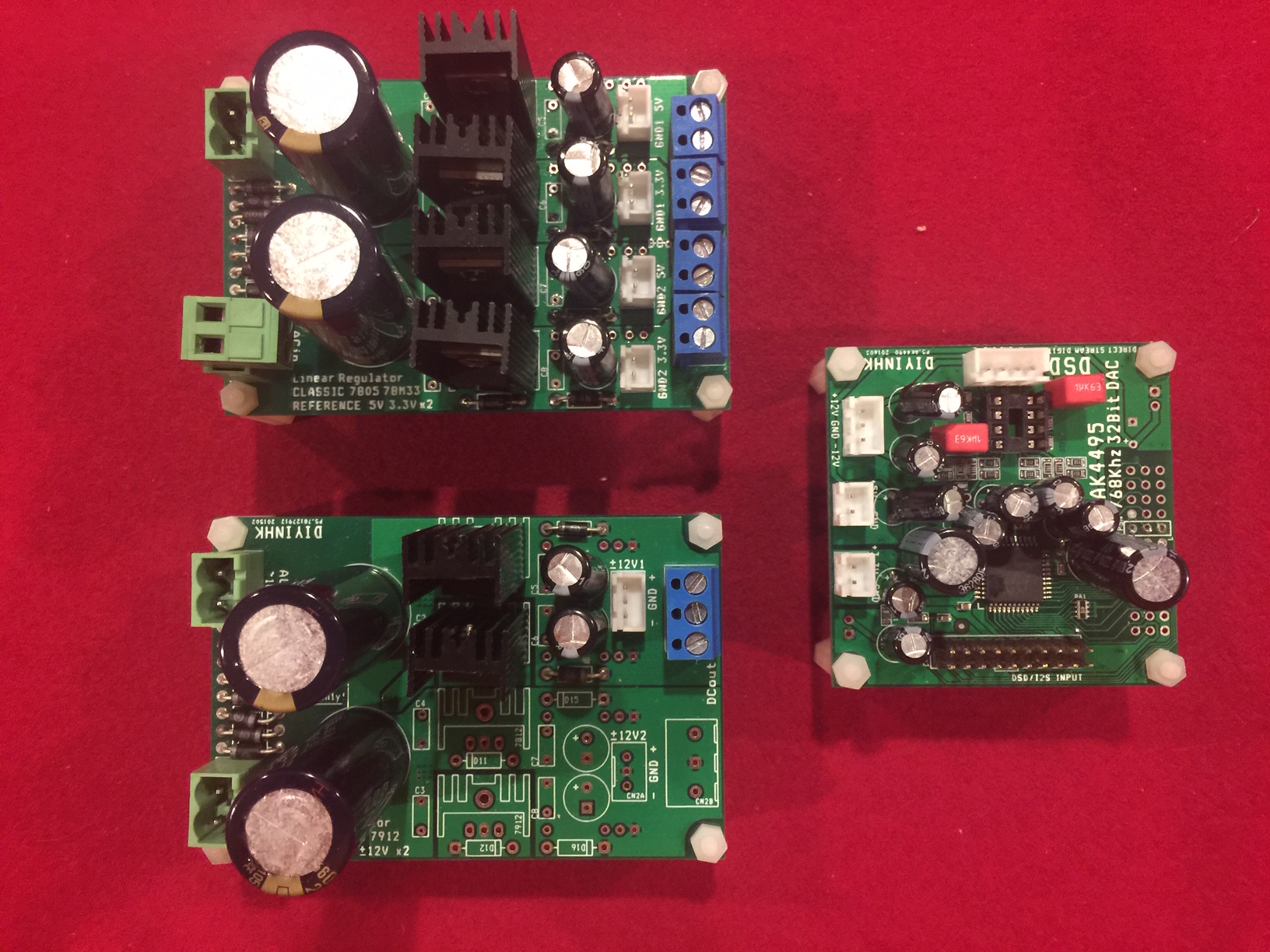

Last year I build AK4495 DAC from DIYinHK kit. It comes with DAC and two PS regulators, 3.3/5v and 12v. See the links below.
https://www.diyinhk.com/shop/audio-kits/70-classic-reference-78xx-power-supply-linear-regulator-33v-5v-12v.htmlhttps://www.diyinhk.com/shop/audio-kits/74-768khz32bit-ak4495seq-dac-i2sdsd-input.htmlI upgraded to AK4497 DAC, so dont need these anymore. This is my first experience soldering PCB mounts, so not the best job.
To make it work, you would need a dual opamp and a XMOS module, and ps transformers. I was using the Isolated XMOS linked below. They have a cheaper model too.
https://www.diyinhk.com/shop/audio-kits/116-isolated-xmos-768khz-dxd-dsd512dsd1024-high-quality-usb-to-i2sdsd-pcb.htmlAttachment:
IMG_3357.JPG [ 695.67 KiB | Viewed 11209 times ]
