Got the sub modules, tops and bases back from painting and ready for servo driver installation. :)


Attachments:
6x12CabsPainted.jpg [ 333.33 KiB | Viewed 39365 times ]
Top
 Profile

tomp
PostPosted: May 26th, 2024, 7:52 am
Offline
User avatar

Joined: February 28th, 2013, 3:31 pm
Posts: 1849
Monster effort! A man of my own level of insanity. :crazy:
Top
 Profile

HAL
PostPosted: May 26th, 2024, 8:01 am
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894
After I heard that there is a pair of heavily modified Infinity IRS Reference V's near you (so far my favorite speaker of all time in a big room), makes me work harder for the lower income version.

As the car guys say, there is no replacement for displacement...

Yes, pure insanity and loving it! :D
Top
 Profile

tomp
PostPosted: May 26th, 2024, 8:53 am
Offline
User avatar

Joined: February 28th, 2013, 3:31 pm
Posts: 1849
In the old days when Luigi Chinetti ran Ferrari USA he said the only substitute for cubic inches is rectangular money.
Top
 Profile

HAL
PostPosted: May 28th, 2024, 7:16 am
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894
Getting started with the servo sub installations.

Have 6 of the drivers wired and 6 new ones to wire.


Attachments:
6x12CabsPainted+ServoDrivers.jpg [ 361.29 KiB | Viewed 39222 times ]
Top
 Profile

HAL
PostPosted: May 31st, 2024, 7:33 pm
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894

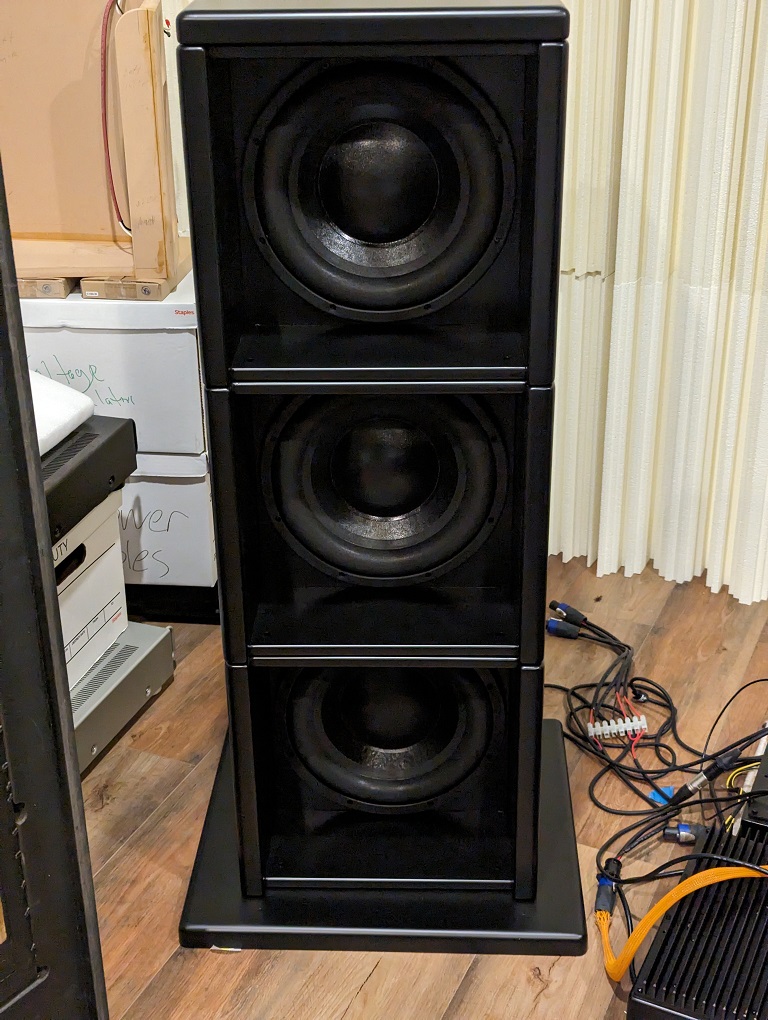

The servo subs are getting installed and wired in the OB modular cabinets.


Attachments:
ServoSubInstall#1for6x12.jpg [ 382.41 KiB | Viewed 39097 times ]
Top
 Profile

HAL
PostPosted: June 1st, 2024, 9:17 pm
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894
The servo subs are being assembled.


Attachments:
ServoSub3-stack.jpg [ 342.97 KiB | Viewed 39064 times ]
ServoSub2-stack.jpg [ 348.14 KiB | Viewed 39064 times ]
ServoSubRearWiring.jpg [ 331.75 KiB | Viewed 39064 times ]
Top
 Profile

HAL
PostPosted: June 1st, 2024, 9:18 pm
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894
Done for today. First 4 modules completed.


Attachments:
ServoSub4-stack.jpg [ 3.65 MiB | Viewed 39064 times ]
Top
 Profile

HAL
PostPosted: June 2nd, 2024, 4:20 pm
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894
And it grows!

More modular servo sub modules complete. Five more to go then start building the connection cable harnesses to the servo amps.


Attachments:
ServoSub4+3stack.jpg [ 349.51 KiB | Viewed 39016 times ]
ServoSub4+2stacks.jpg [ 388.32 KiB | Viewed 39016 times ]
Top
 Profile

HAL
PostPosted: June 2nd, 2024, 8:48 pm
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 894

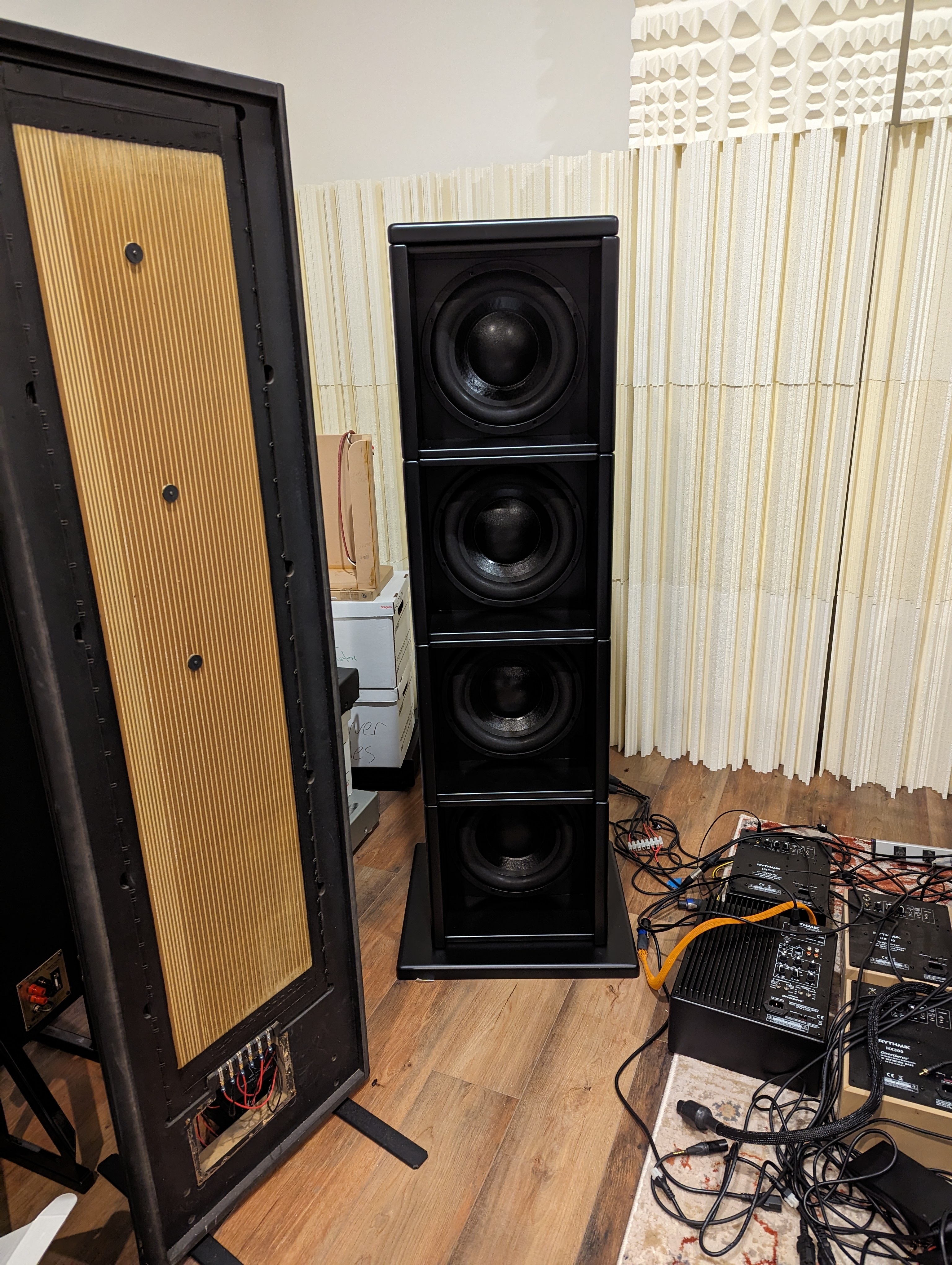

Eight modules complete.

Four more servo sub driver installs in the cabinets and then time to make the wiring harness to connect the drivers to the servo amps.


Attachments:
ServoSub4+4stack.jpg [ 348.19 KiB | Viewed 39003 times ]
Top
 Profile
